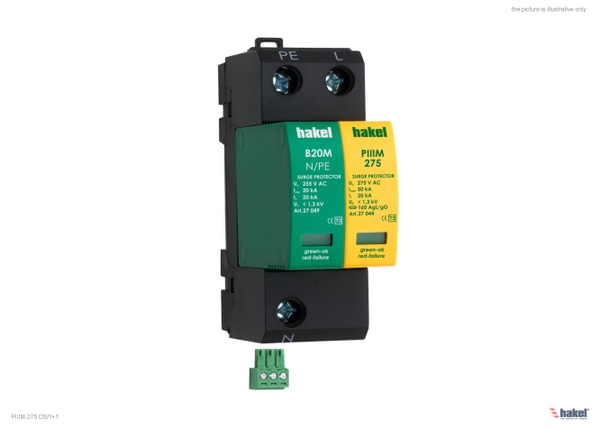

Lan truyền Hakel PIIIM-275 DS/1+1
Mã sản phẩm: PIIIM-275 DS/1+1
Nhà sản xuất: Hakel
1.650.000₫
Chống sét lan truyền cho hệ thống điện nguồn PIIIM-275 DS/1+1 do Czech sản xuất, Nhập khẩu bởi công ty chống sét Gia Anh, sử dụng rất phổ biến cho Type 1 + 2, và đem lại hiệu quả...
- Model : PIIIM-275 DS/1+1
- Thương hiệu : Hakel
- Nước sx : Czech
- Lắp đặt cho đường nguồn điện 1 pha ( 1 dây nóng và 1 dây lạnh )
Test class according to EN 61643-11 ed. 2 and IEC 61643-11 | TYP 2, CLASS II | |
Network type | TN-S TT |
|
Maximum continuous operating voltage | UC | 275 V AC / 350 V DC |
Maximum discharge current | Imax | 50 kA |
Nominal discharge current for class II test (8/20) L/N | In | 20 kA |
Nominal discharge current for class II test (8/20) N/PE | In | 20 kA |
Total discharge current (8/20 µs) L+N->PE | Itotal | 50 kA |
Voltage protection level | Up | < 1,3 kV |
Impulse discharge current for class I test (10/350) N/PE | Iimp | 20 kA |
Temporary overvoltage (TOV) L/N | UT | 335 V/5 s |
Temporary overvoltage (TOV) N/PE | UT | 1200 V/0,2 s |
Response time L/N | tA | < 25 ns |
Response time N/PE | tA | < 100 ns |
Max. back-up fuse | 160 A gL/gG | |
Short-circuit withstand capability 160 A gL/gG | ISCCR | 60 kArms |
LPZ | 1-2 | |
Housing material | Polyamid PA6, UL94 V-0 | |
Degree of protection of enclosure | IP20 | |
Operating temperature | -40°C ... +80 °C | |
Cross-section of the connected conductors (at tightening moment of clamps 3 Nm) | 25 mm2 (wire) 16 mm2 (solid) |
|
Method of assembly | DIN rail 35 mm | |
Failure signalisation (S) | pushed in - ok / pushed out - failure | |
Potential free signal contact (DS) (recommended cross-section of remote monitoring max.1 mm2) | AC: 250 V / 0,5 A, DC: 250 V / 0,1 A | |
Lifetime | min. 100 000 h | |
Weight | m | 174 g |
Article number | 24 145 |
---------------------------------------
